Adapter Sleeves

Adapter Sleeves

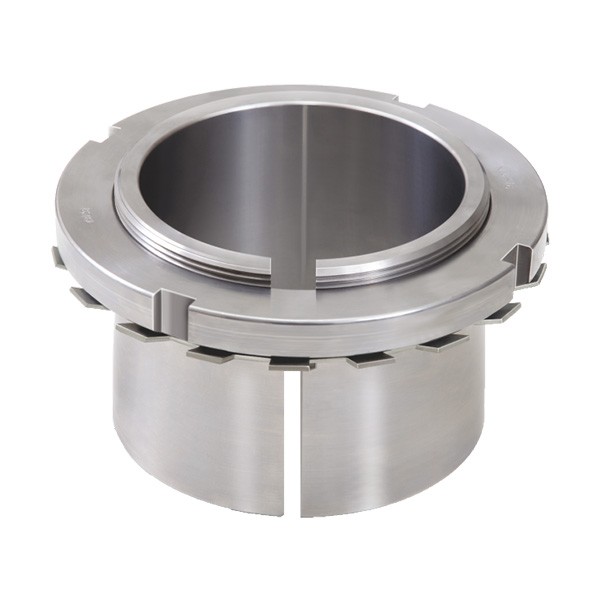

MASTA Adapter Sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical shaft seat. They are precision-manufactured on CNC machines to ensure repetitive accuracy and an excellent aesthetic finish.

Size Range
As per requirement
Surface Finish
Standard / Customized
Application
Industrial Use
Country of Origin
India
Drop-in Adapter Sleeves replacement
Heavy-duty rated
4 Seal options
Why Choose Adapter Sleeves

Key Features & Improvements

Engineering advancements that make the Adapter Sleeves the smarter, longer-lasting choice.

  • Complete Assembly: Supplied as a complete set including a tapered sleeve, a lock nut, and a lock washer (or locking clip).
  • Flexible Placement: These sleeves facilitate easy mounting and dismounting as they require no additional location on the shaft; you can mount the bearing at any desired position.
  • Precision Taper: Features a standard external diameter taper of 1:12, designed to match perfectly with the inside tapered bore of the bearing.
  • High-Grade Material: Standard sleeves are manufactured from durable C20 – C30 Carbon Steel and comply with ISO 113/I-1979 dimensions.
  • Hydraulic "OH" Variants: For large-scale applications (Size 44 and above / bore diameter 200 mm+), we offer the "OH" design. These include oil holes and distribution grooves, allowing for hydraulic oil injection to make mounting and dismounting heavy bearings effortless.
Specifications

Technical Summary

Full dimensional and performance data for the Adapter Sleeves.

  • Standard Taper: 1:12
  • Standard Compliance: ISO 113/I-1979
  • Special Types: "OH" Sleeves for Hydraulic Injection
